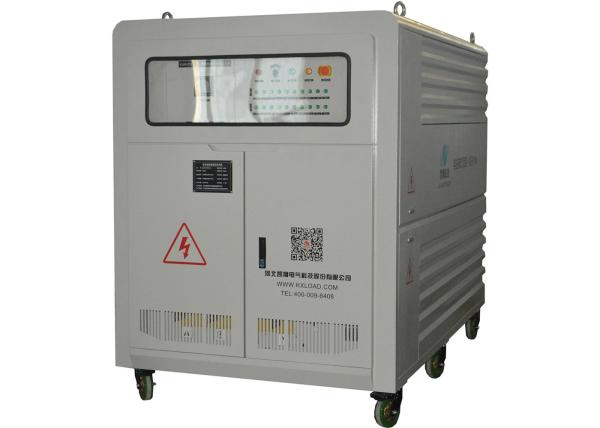

westerbeke testing equipment 1000kw Load Bank 3 Phase 4 Wire
Introduction
This system, which is of independent research and development of electricity load test equipment by our technology, combining high voltage dry type load module with the automatic measurement and control module, with excellent insulation protection performance, it can directly detect high voltage generator output power and load capacity (no need step down transformer), full load and overload test.
The system consists of 1 sets of 3MW load bank. The system is made up of two parts of measurement & control and load, mainly including the high voltage dry type AC load bank, automatic data acquisition system, automatically loading and unloading control system, the cooling device, auxiliary control, remote control box and PC software and so on.
Application
The system can be used with a computer to realize the intelligent control, automatically completing the special test to all electrical parameters of generating set and generating tables, graphs, and supporting the print, release from the cumbersome manual operation to provide scientific and efficient detection means for the large power high voltage generating sets.
| AC380-1000kW Automatic Load Bank |
| Rating Voltage/Frequency |
380VAC, 3 phase 4 wire, wire voltage 380V, phase voltage 220V
50Hz
|
| Rated Load Power |
Resistive load: 1000kW |
| Installed Capacity |
Resistive load: 1000kW |
| Load Step |
1,2,2,5,10,10,20,50,100,200,200,200,200kW, min step load: 1kW |
| PF(Power Factor) |
1 |
| Load Tolerance (each step) |
±5% |
| Load Tolerance(overall) |
±3% |
| Display Precision |
0.5 class |
| Control Power |
External 380VAC/50Hz, 3 phase 4 wire, 220V 1-phase |
| Wire Connection |
Load power supply input——Copper bar (star coupling)
Control power supply input——Connector-bar
|
| Insulation |
F |
| Duty Cycle |
Continuous |
| Cooling Type |
Force air cooling, horizontal air inlet and horizontal air outlet |
| Transportation |
Hoisting, there are lifting lug on top and castors at the bottom of casing |
| Dimension |
2440mm*1440mm*1680mm(L×W×H) |
| Weight |
About 1500kgs |
| Casing Color |
Grey(RAL7035)or as required |
| Operating Environment Parameter |
| Workplace |
Indoor or outdoor with canopy |
| Ambient Temperature |
-10℃～+50℃ |
| Relative Humidity |
≤95% |
| Altitude |
≤2500 meter |
| Atmospheric Pressure |
86～106kPa |
| Brands of Main Components |
| Contactor |
Schneider |
| Fuse |
Miro |
| PLC |
Siemens |
| Data processing software |
Kaixiang(self-developed) |
| Alloy Resistance |
Kaixiang(self-developed) |
Main features
High Efficiency Data Management: display real-time testing data, generate curves graphs automatically, also can put data into storage. According to generator set No. set up testing file, support to query at any time, and improve data management efficiency.
Comprehensive Protection Function: multiple protection, like over temperature, smoke. When in danger, automatically terminate the test and give alarm to protect safety of personnel and equipment.
Stable Running: with the latest generation control module as the core, a sharp rise in system response speed and anti-interference performance, avoid function failure in complex electrical environment, and ensure system running stably and reliably.
Flexible Control Mode: based on different using habit, several control modes as following can be choose, local panel operation, remote box controlling, and intelligent software.
Intelligent Loading: after setting generator rated power in software, system realize rapid loading through preset proportion, automatically and continuously load multiple power value and common tests, like stepping, full load, and over load, so that improve working efficiency.
